Cone mixer​

Product​

​Cone mixer

Cone dimensions​

Standard

h = 1000mm

DØ = 1250mm

dØ = 200m​m

Material​

Stainless steel (Approved for food indusrty)​

Features​

​Hydraulic height adjustment

Electrical control

Moblie

Window

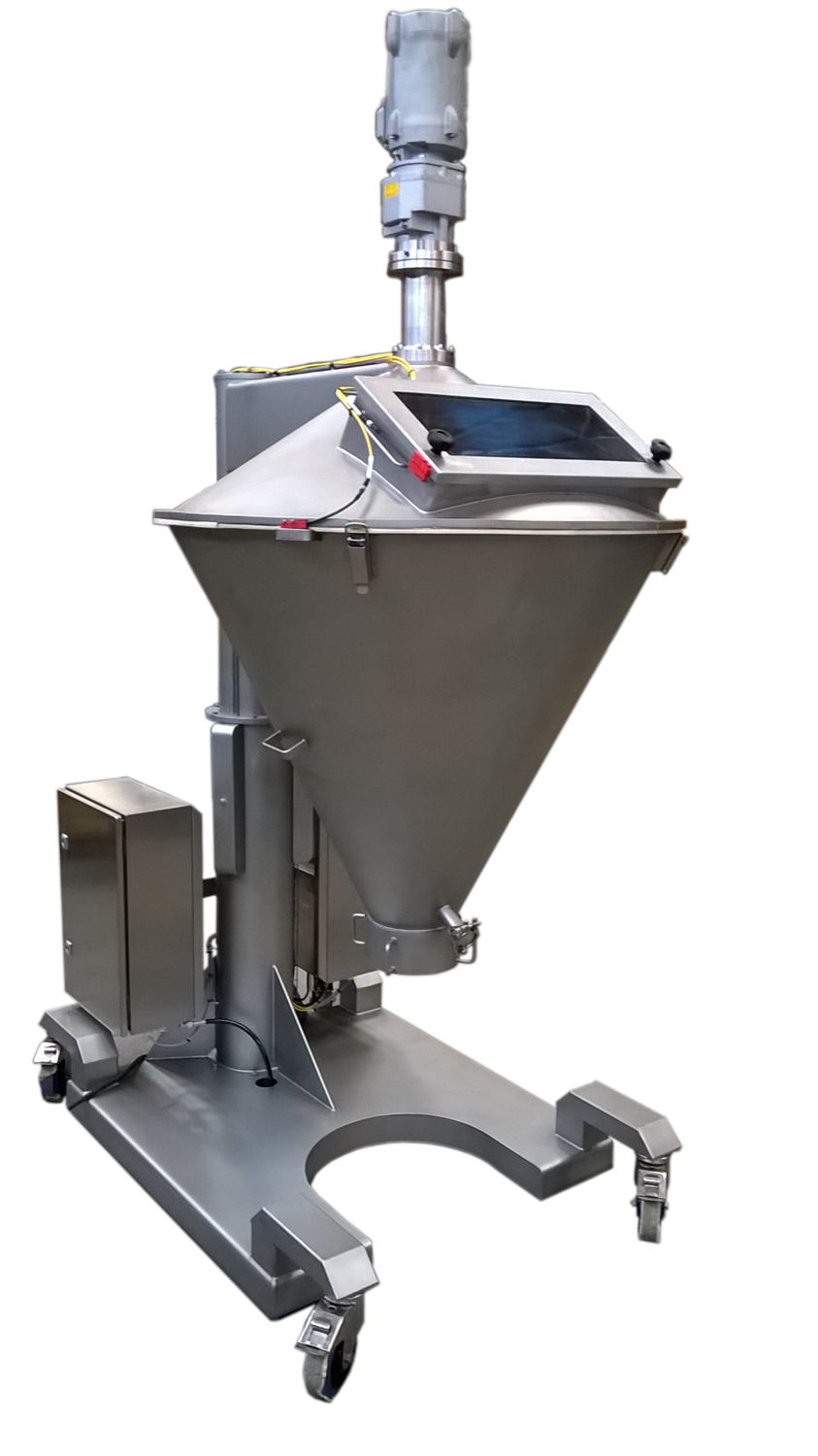

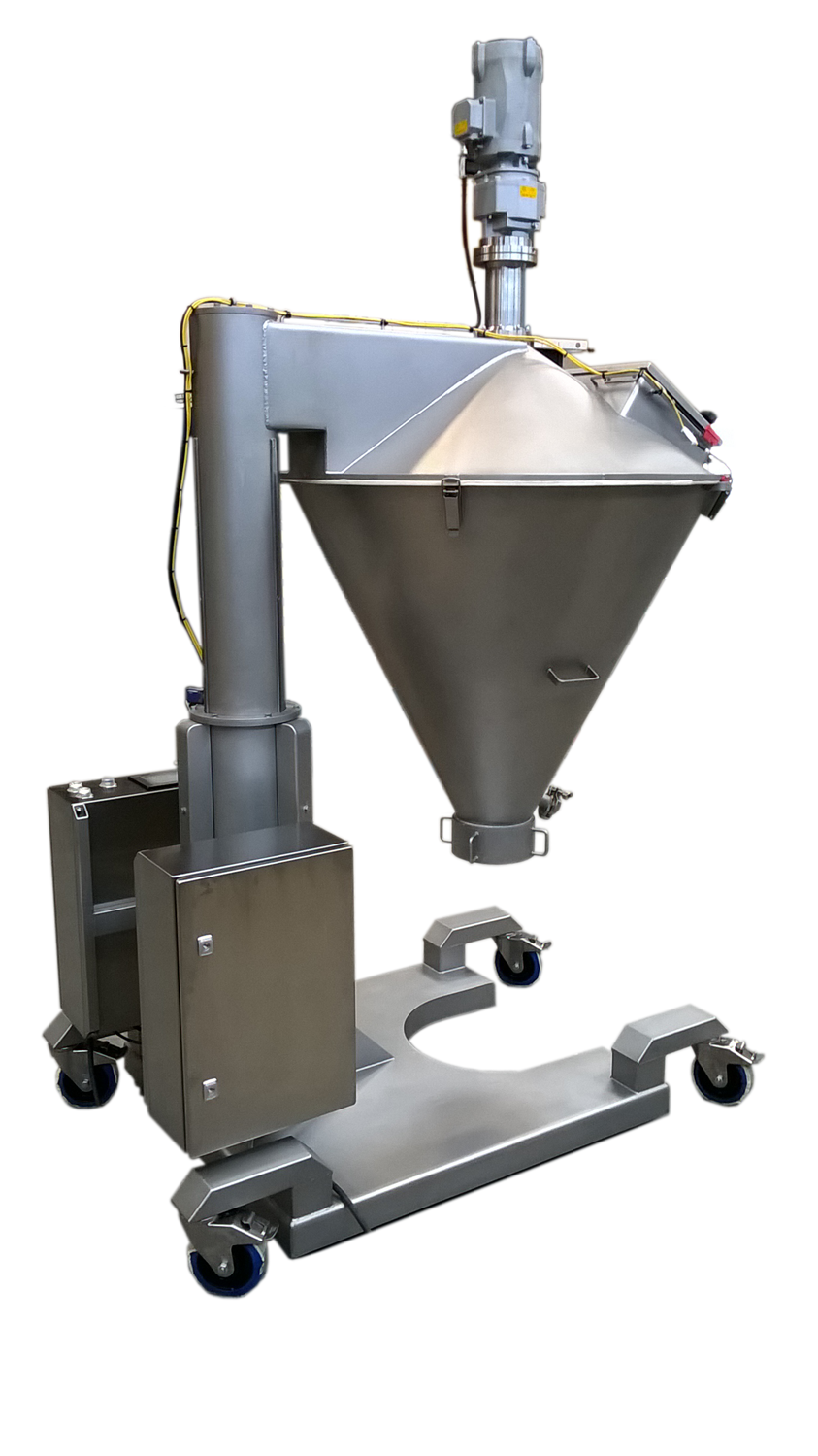

Cone mixer in stainless steel with spiral rotor, gear motor and bottom valve.
The height of the cone mixer is easily adjusted with the built-in hydraulic system.

The cone mixer comes with front hatch for easy filling. The hatch comes with both safty grid and window.

The cone container of the mixer has a volume of about 400 L and is shaped as illustrated on the pictures. The container is easily separated from its lid using snap locks.

The cone mixer comes with PLC control as standard.

Can be customized as needed.​
